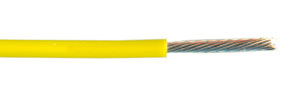

BS3G210 PTFE Single Core-High Temperature cable
These cables are manufactured to BS3G210 and operate up to 200°C or short term 250²C with silver plated conductors. (Nickel plated conductor versions to work up to 260°C are available to special order).
PTFE is a remarkable material. It is unaffected by most oils, fuels and fluids. The high temperature range makes it resistant to damage from heat sources such as soldering irons.
Other voltage ratings are available with many of the wires conforming to American MIL, VDE, DIN, BS, or Lloyd's standards.
Multi-core and screened or armoured versions can also be manufactured in many sizes and styles.
Informazioni tecniche
| Voltage Working |
Type A 300V |
Test 2500V |
|
Type B 600V |
Test 3400V |
|
Type C 1000V |
Test 5000V |
| Temperature Range |
Static -55°C to +200°C |
Short Term +250°C |
| Bending Radius |
Static 6 x cable diameter |
| Conductor material |
Silver plated copper |
| Manufactured to BS3G210. |
Dati tecnici
Dimensione
AWG |
Arenate
x mm |
CSA
mm² |
Tensione Grado |
Peso
Kg/Km |
O/D mm
min - max |
| 30 |
7/0.10 |
0.056 |
A |
1.1 |
0.50-0.65 |
| 28 |
7/0.12 |
0.089 |
A |
1.4 |
0.56-0.71 |
| 28 |
7/0.12 |
0.089 |
B |
2.1 |
0.76-0.96 |
| 26 |
7/0.15 |
0.14 |
A |
1.1 |
0.65-0.80 |
| 26 |
7/0.15 |
0.14 |
B |
3.09 |
0.85-1.05 |
| 24 |
7/0.20 |
0.22 |
A |
3.04 |
0.80-0.95 |
| 24 |
7/0.20 |
0.22 |
B |
3.89 |
1.00-1.20 |
| 24 |
7/0.20 |
0.22 |
C |
4.64 |
1.26-1.52 |
| 22 |
19/0.15 |
0.35 |
A |
4.41 |
0.95-1.10 |
| 22 |
19/0.15 |
0.35 |
B |
5.44 |
1.15-1.35 |
| 22 |
19/0.15 |
0.35 |
C |
6.43 |
1.41-1.67 |
| 20 |
19/0.20 |
0.61 |
A |
7.19 |
1.20-1.35 |
| 20 |
19/0.20 |
0.61 |
B |
8.43 |
1.40-1.60 |
| 20 |
19/0.20 |
0.61 |
C |
9.08 |
1.66-1.92 |
| 18 |
19/0.25 |
0.96 |
B |
12.1 |
1.65-1.85 |
| 18 |
19/0.25 |
0.96 |
C |
14.3 |
1.91-2.17 |
| 16 |
19/0.30 |
1.23 |
C |
16.5 |
2.16-2.46 |
| 14 |
19/0.36 |
1.94 |
C |
23.9 |
2.34-2.74 |
| 12 |
19/0.45 |
3.08 |
C |
38.5 |
2.91-3.31 |
| 10 |
37/0.40 |
4.65 |
C |
56.0 |
3.46-3.86 |
|
